*Accurate measurement of LPG non‑volatile residues per SY/T 7509*
Liquefied Petroleum Gas (LPG) may leave residues after evaporation, which can affect combustion efficiency, clog valves, and damage downstream equipment. The LPG Residue Tester is designed and manufactured in strict accordance with the SY/T 7509 test method. It is specifically used to determine the residue content of liquefied petroleum gas after volatilization at 37.8 °C – a critical quality parameter for LPG producers, inspectors, and end‑users.
| Parameter | Value |
|---|---|
| Power supply | AC220V ±10%, 50Hz |
| Input power | 2 kW |
| Temperature control range | +50 °C ~ –60 °C |
| Temperature control accuracy | ±0.1 °C |
The tester integrates four functional modules:
Cold bath – for low‑temperature residue separation
Water bath – for precise temperature control during the test
Test tube rack – holds sample tubes securely
Stirring device – ensures uniform temperature distribution
Key Features & Advantages✔ Precise temperature control from +50 °C down to –60 °C
With an accuracy of ±0.1 °C, the instrument provides stable, repeatable conditions required by the SY/T 7509 method. The wide range allows both residue evaporation and cooling steps to be performed.
✔ High‑performance refrigeration system
The cold bath utilizes imported compressors and cascade refrigeration technology, delivering fast cooling, stable operation, and extended service life – ideal for labs running frequent LPG residue tests.
✔ Digital temperature controller – intuitive and easy to use
The water bath is controlled by a digital temperature controller with a clear display, allowing operators to set and read temperatures effortlessly.
✔ Compact, robust, and aesthetically designed
The unit features a compact structure, attractive appearance, and user‑friendly layout, saving bench space while ensuring ease of operation.
✔ Designed for SY/T 7509 compliance
Fully compliant with the industry standard for LPG residue determination, ensuring your test results are consistent, reliable, and widely accepted.
Quality control of liquefied petroleum gas (LPG) for domestic, industrial, and automotive use
Determining non‑volatile residues that may cause valve clogging or combustion issues
Incoming inspection for LPG storage and transportation facilities
R&D and formulation optimization of LPG blends
Third‑party inspection and certification laboratories
Ideal for:
Petrochemical labs, gas supply companies, inspection agencies, and energy research institutions.
| Feature | Benefit |
|---|---|
| SY/T 7509 compliant | Standardized method – authoritative results |
| Temperature range +50°C to –60°C | Covers all required steps in one unit |
| Accuracy ±0.1°C | High reproducibility |
| Imported compressors + cascade refrigeration | Rapid cooling, stable, long life |
| Digital temperature controller | Easy setting, clear reading |
| Compact, integrated design | Saves space, easy to maintain |

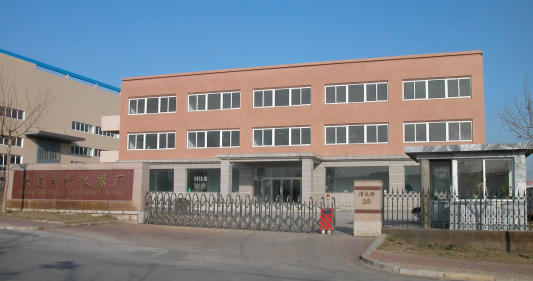

Dalian Analytical Instrument Factory achieved ISO9001 (2000) quality management system certification in 2002. We have established a reliable quality assurance system covering design, production, and service for:
High‑ and low‑temperature instruments for petroleum products (gasoline, kerosene, diesel, lubricating oils, etc.)
General laboratory thermostatic instruments
Our commitment to quality ensures that every instrument – including the LPG Residue Tester – meets rigorous standards for performance and durability.
Ensure your LPG meets residue specifications. Contact us today for quotes, technical datasheets, and operating procedures.
📧 Sales email: [lovecarlos2000@gmail.com]
📞 24‑hour hotline: [+86 15941156556]
LPG Residue Tester – Precision you can rely on for clean‑burning gas
