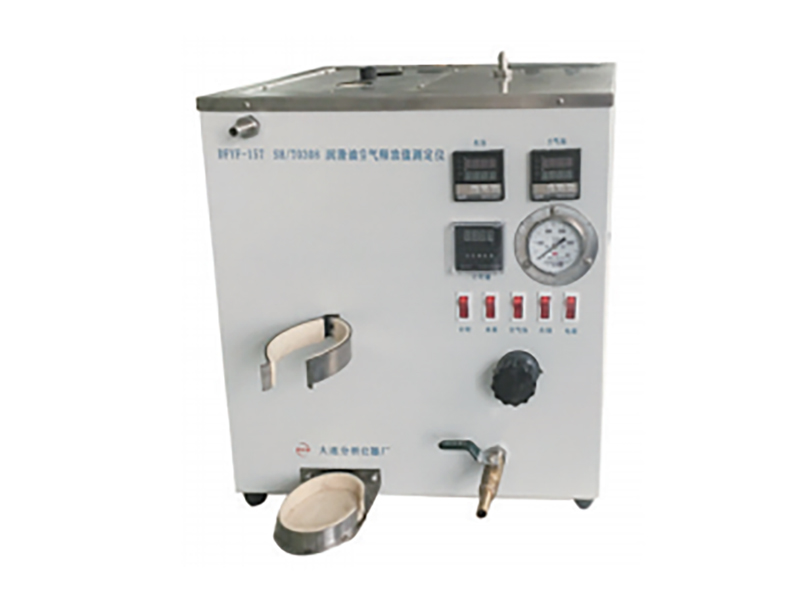

Introduction of Air Release Value Analyzer
The air release value analyzer is designed and manufactured in accordance with China’s petrochemical industry standard SH/T0308, "Determination of Air Release Value of Lubricating Oils". This instrument is specifically intended to measure the ability of petroleum products—such as turbine oils and hydraulic oils—to separate entrained or dissolved air (mist air) under defined conditions.
Advantages of the Air Release Value Analyzer
The analyzer consists of three main sections: an air bath, a circulating water bath, and a control unit.
Air bath: Equipped with a stainless steel buffer bottle heater and an air pressure gauge for adjustment.
Water bath: Made of stainless steel, offering high strength and long-term durability.
The lubricating oil tester employs an intelligent temperature controller, ensuring high-precision temperature regulation and straightforward operation.
Solid-state relay output is used in the system. This component provides the benefits of no visible electrical arcing (no obvious contact sparking) and enhanced operational safety.
Working Principle of the Air Release Value Analyzer
Compressed air passes through a filter and an air heater before entering a jacketed glass test tube. At this stage, both the air pressure and temperature meet the required test specifications.
The circulating water bath is composed of a circulating water pump and a bath tank. The tank is fabricated from stainless steel plates, providing corrosion resistance and an extended service life.
The control system utilizes a digital temperature controller to monitor and regulate the bath temperature. This controller features high accuracy, an intuitive display, and simple operation.
Overall, the air release value analyzer is designed with a rational structure and complete configuration. It is characterized by ease of operation, strong reliability, an attractive appearance, and long-lasting performance.
Parameters of Lubricating Oil Air Release Value Tester
| Parameter | Specification |
|---|---|
| Voltage | AC220V ±10%, 50Hz |
| Input power | 1000 W |
| Water bath temperature range | Ambient ~99.9°C |
| Air bath temperature range | Ambient ~99.9°C |
| Water bath temperature accuracy | ±0.1°C |
| Air bath temperature accuracy | ±5°C |
Why Choose Our Company
Our company possesses deep industry expertise and extensive practical experience. Our team consists of seasoned professionals who fully understand the specific requirements and challenges associated with lubricating oil testers and air release value analyzers. Whether customers need training, maintenance, or technical support for these instruments, we are committed to providing timely and effective assistance. By adopting unique technologies and methods, we deliver more efficient and accurate petroleum analysis solutions, along with the highest quality air release value analyzers on the market.
About Us
Dalian Analytical Instrument Factory achieved ISO9001 (2000) quality management system certification in 2002. This certification ensures reliable quality control across all stages of design, production, and service for petroleum-related instruments (applicable to gasoline, kerosene, diesel, lubricating oils, etc.), including high/low temperature devices and general laboratory thermostatic equipment. Over the years, our factory has continued to grow and innovate thanks to the consistent support and trust of Sinopec Group, China Natural Gas Group, various research institutes, and customers from all sectors of society.
