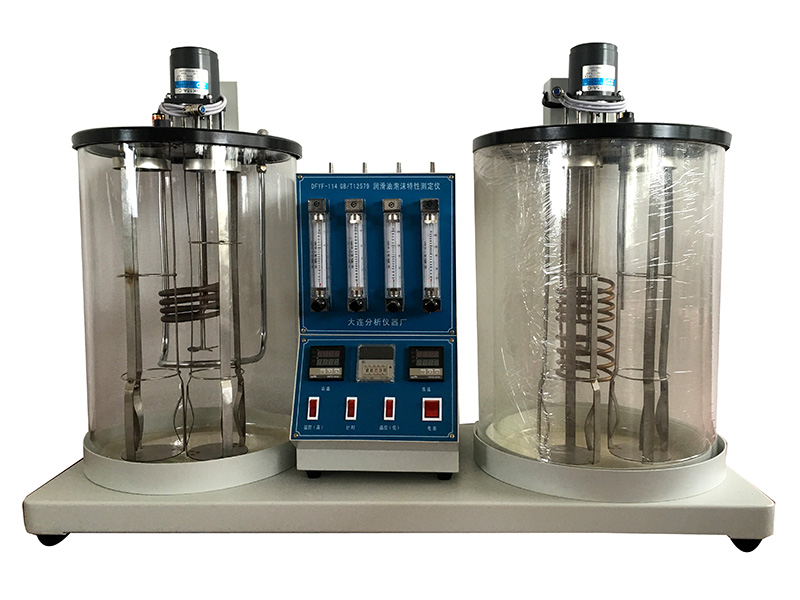

Introduction of Lubricating Oil Tester
The lubricating oil tester is designed and manufactured in accordance with GB/T12579 and ASTM D892, "Standard Test Method for Foaming Characteristics of Lubricating Oils". This air release value tester is specifically used to determine the foam tendency and foam stability of lubricating oils under controlled laboratory conditions.
Advantages of a High-Quality Air Release Value Tester
The high-quality air release value tester integrates several key components: a high-temperature bath, a low-temperature bath, heating elements, temperature control systems, air supply units, and sample containers.
The temperature baths are regulated by a digital temperature controller, which provides precise temperature management and a clear, intuitive display, making operation straightforward (refer to the temperature controller manual for detailed steps). When the bath temperature falls below the preset value, the controller deactivates the heating device via a solid-state relay. Combined with the continuous action of a stirring mechanism, the system maintains a stable and uniform bath temperature.
The tester utilizes either an air pump or a nitrogen cylinder to deliver a regulated and quantified air flow through a flow meter, an air diffusion head, and finally into a measuring cylinder containing the sample. This setup allows for accurate measurement of the bubble volume generated within the sample.
Technical Parameters of the Lubricating Oil Foam Characteristic Tester
| Parameter | Specification |
|---|---|
| Power supply | AC220V ±10%, 50Hz |
| Heating power | 2.4 kW |
| Temperature control range | Ambient ~99.9°C (compatible with refrigeration unit) |
| Stirring motor | 15 W |
| Temperature control points | 24°C and 93.5°C |
| Temperature control accuracy | ±0.1°C |
| Air flow rate | 94 mL/min ± 2 mL/min |
| Timer | Digital display |
Why Choose Our Company
Our company possesses deep industry expertise and extensive hands-on experience. Our team consists of seasoned professionals who thoroughly understand the specific requirements and challenges associated with lubricating oil testers. Whether customers need training, maintenance, or technical support for our high-quality air release value testers, we are committed to providing timely and effective assistance. By integrating unique technologies and methodologies, we deliver more efficient and accurate petroleum analysis solutions along with the highest quality air release value testers.
About Us

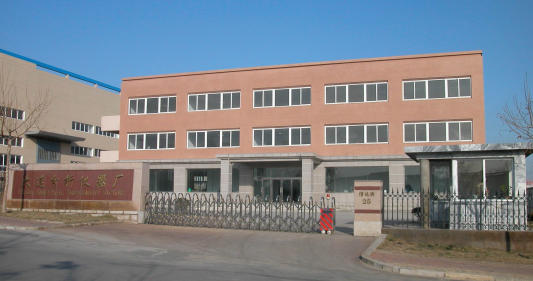

Dalian Analytical Instrument Factory achieved ISO9001 (2000) quality management system certification in 2002. This ensures reliable quality control across all stages of design, production, and service for petroleum-related instruments (applicable to gasoline, kerosene, diesel, lubricating oils, etc.), including high/low temperature devices and general laboratory thermostatic equipment. Over the years, our factory has continued to grow and innovate thanks to the consistent support and trust of Sinopec Group, China Natural Gas Group, various research institutes, and customers from all sectors of society.
